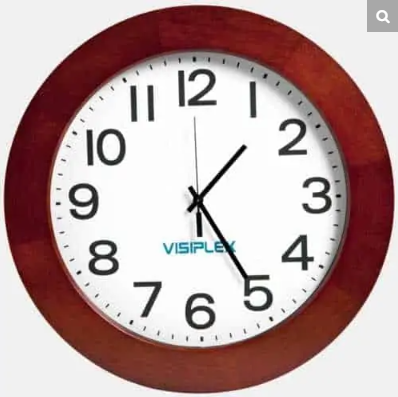

The TS4166 is a 16″ Wireless Synchronous Clock with a wood Cherry frame that can receive a time synchronization signal to provide accurate time display throughout any sized facility.
The TS4166 synchronous clock receives a wireless time signal transmitted daily by a main wireless paging controller, such as the VS4810 or the VS4500. The TS4166 uses the time signal to automatically adjust its time during Daylight Saving Time changes and minor daily time adjustments, if necessary, to ensure accurate and synchronized time throughout the entire facility.
The TS4166 is battery-operated and does not require any wiring, making it ideal for renovation projects and new synchronized clock system installations.
The TS4166 wireless synchronous clock is designed to match a variety of time synchronization applications while providing years of improved productivity and maintenance-free solutions.
Weight
2.8 lbs
Dimensions
18 × 18 × 4 in
Product Dimensions
16" x 16" x 1.65" (W x L x D)
Product Weight
2.5 lbs.
Power
Two C Sized Batteries Optional AC Power (AC-DC Adaptor)
Operating Temperature
32° – 120°F
Humidity
0% – 95%, Non-Condensing
Frames & Lens
Wood Cherry Frame, Plexiglass Lens
Viewing Distance
150 ft.
Clock Dial Face
12.5", White
Frequency
VHF (148 – 174 MHz), UHF (400 – 470 MHz)
Paging Format
POCSAG, Narrow Band
Synchronization
1 Time/Day (Optional 6 Times/Day, User Selectable)
