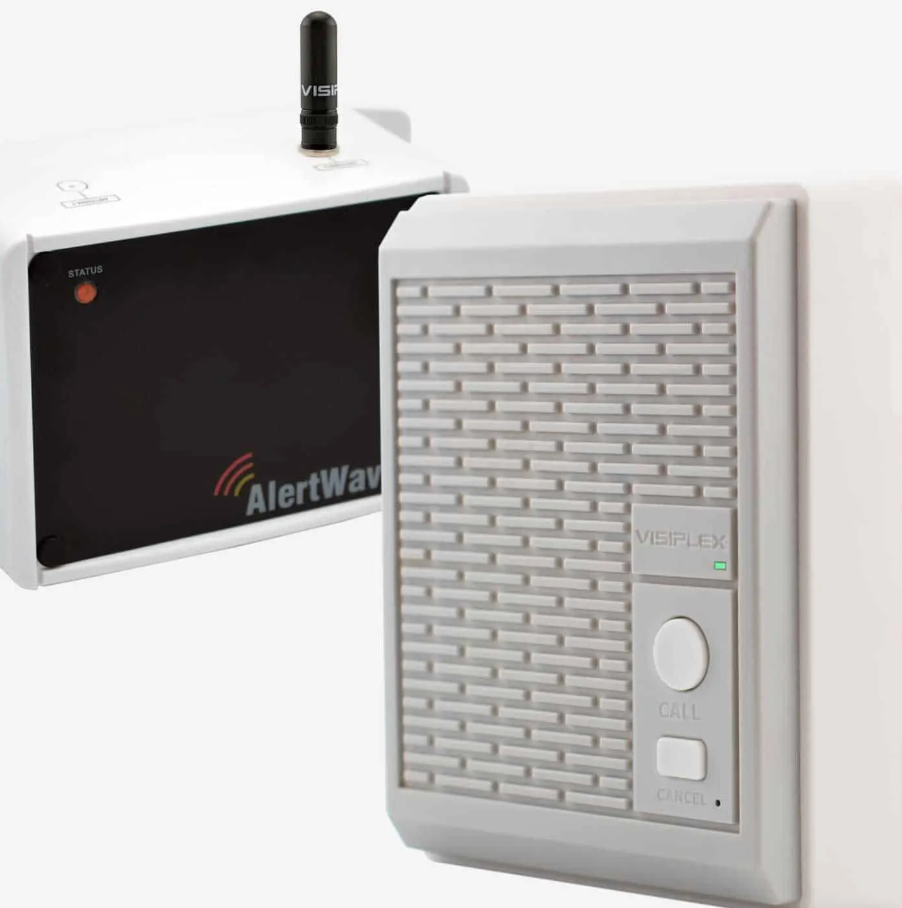

The VNS2216 Push-To-Talk Wireless 2-Way Intercom Station is designed to provide two-way communication in installations where traditional hard-wired intercom systems is impractical or too costly. In addition, the VNS2216 can drive one or two attached public address speakers for pre-recorded audio alerts or live voice announcements and control up to two beacon light fixtures to provide high-impact visual alerts. The VNS2216 Wireless 2-Way Intercom Station can be activated and controlled individually or as a part of up to multiple groups/zones for flexible unit activation from a paging base station or wearable/wall-mounted panic buttons.
The VNS2216 wireless intercom station offers additional unique features such as internal battery backup for power outage situations, wireless supervision for remote unit diagnostic and maintenance, background FM radio music, and beacon lights for improved visual alert.
Wireless two-way voice communications with the main base station
Can drive one or two PA speakers
Can play pre-programmed voice messages and tone alerts
Built-in battery option for power failure protection (requires VNS2252)
Can be powered by low voltage PoE power source (requires VNS2258)
NFPA-72 (2010) compliant
Weight
4 lbs
Dimensions
12 × 12 × 6 in
Controller/Station Dimensions
Controller – 7.5" x 4.5" x 3.0", Station – 6.0" x 7.30" x 1.9" (W x H x D)
Controller/Station Weight
Controller – 1.9 lbs. (3.3 lbs. with Internal Battery), Station – 1.4 lbs.
Power
12V DC / up to 5A Active, 50mA in Standby Mode
Color
Controller – Light Gray, Station – Light Gray & White
Operating Temperature
0° – 120°F
Humidity
0% – 95%, Non-Condensing
Audio
50W Peak Output for 4-16 Ohms Speaker
Connectors
Terminal Block Plugs
Programming
USB Port
Transmit Format
POCSAG 512/1200 BPS
Frequency Response
50 Hz – 16 KHz (10 Hz – 3400 Hz in Live Voice Mode)
