Wireless Panic Down Switch

SKU CT157
$140.00
In stock
Save this product for later
Share this product with your friends
Product Details
Brand: Visiplex

Description

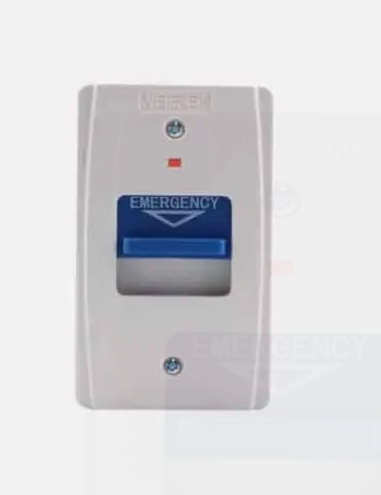

The CT157 Panic Pull Down Switch is a compact, wall-mounted, wireless transmitter that can initiate audio/visual emergency alerts, activate pre-programmed voice messages through wireless PA speakers, or send a detailed text message to wireless LED message boards.
The CT157 is designed to function as a standalone device or as part of Visiplex’s paging base station. When used in a standalone configuration, the CT157 can directly initiate audio/visual emergency alerts, activate pre-programmed voice messages through wireless PA speakers, or send a detailed text message to wireless LED message boards. When operating as part of a paging base station, the CT157 can in addition to the above, send SMS text messages to staff members' cell phones and provide full supervision capabilities to ensure reliable operation at all times.
Equipped with a built-in, long-lasting Lithium battery, the CT157 will provide years of maintenance-free operation, while offering wireless functionality supervision.
The CT157 wireless panic pull-down switch comes standard with a red pull switch, which is also offered in amber, blue, green, and black.
  • Activate pre-programmed voice messages through wireless PA speakers
  • Send text messages to wireless LED message boards
  • Initiate a detailed SMS text message to the supervisor's cell phone
  • Control activation of wireless beacon & corridor lights
  • Long transmission range (up to 300′ – can be extended with a repeater)
  • Wireless, wall-mounted simple installation
  • Fully supervised, to ensure reliability
  • Long-life Lithium battery for maintenance-free operation
Weight 1 lbs
Dimensions 8 × 8 × 4 in
Station Dimensions

2.75" x 4.5" x 1.6" (W x H x D)

Station Weight

0.22 lbs.

Power

Single CR2 3V Lithium Battery

Color

Frame – Off-White, Switch – Red, Black, Green, Blue, Amber

Activation Modes

Up to 6 – Call, Cancel, Supervision, Repeat, Escalation & Low Battery

Operating Temperature

32° – 140°F

Humidity

0% – 90%, Non-Condensing

Programming

USB interface with PC Based Programming software

Activation Types

Pull Switch

Frequency

400-420 MHz, 450-470 MHz

Stability

Better than 5 PPM

RF Range

300' – 1000' (More than a mile with a Repeater).

Paging Format

POCSAG, 512, 1200 or 2400 BPS

Channel Spacing

12.5 KHz – Narrow Band

Limited Warranty

One-Year Parts and Labor


Wireless Panic Down Switch
