Wireless Paging Controller

SKU VNS2210
$300.00
In stock
Save this product for later
Share this product with your friends
Product Details
Brand: Visiplex

Description

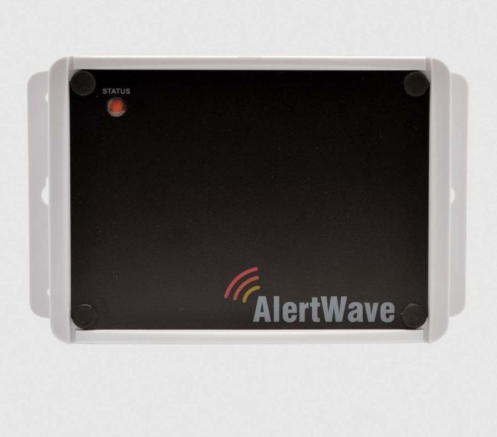

The VNS2210 Wireless PA Controller can drive one or two attached public address speakers and play pre-recorded audio alerts or live voice announcements. In addition, the VNS2210 can control one or two strobe light fixtures to provide high-impact visual alerts. The VNS2210 wireless PA controller can be activated and controlled individually or as a part of up to seven groups/zones for flexible unit activation from a main wireless paging controller or personal/wall-mount compact transmitters.

The VNS2210 can be expanded with additional accessories and options:

VNS2252 – Built-in power backup battery in case of a power failure.
VNS2284 – Built-in contact closure and line-level audio outputs for integration with local wired PA or fire alarm systems.
VNS2258 – PoE power option to utilize network power source.

  • Drive one or two Public Address speakers
  • Play pre-programmed voice messages and alert tones
  • Control one or two synchronized strobe lights (requires VNS2282)
  • Integrate with an existing Public Address system (requires VNS2284)
  • Built-in battery option for power failure protection (requires VNS2252)
Weight 3 lbs
Dimensions 8 × 8 × 4 in
Dimensions

7.5" x 4.5" x 3.0" (W x H x D), (Adaptor: 2.5" x 8" x 1.5"), Adaptor Cable: 6 ft., Power Cable: 6 ft.

Weight

1.9 lbs. (3.3 lbs. with Internal Battery)

Power

12V DC / up to 5A Active, 50mA in Standby Mode

Color

Light Gray

Operating Temperature

0° – 120°F

Humidity

0% – 95%, Non-Condensing

Audio

50W Peak Output for 4-16 Ohms Speaker

Frequency Response

50 Hz – 16 KHz (10 Hz – 3400 Hz in Live Voice Mode)

Connectors

Terminal Block Plugs

DC Voltage Output

12V DC, 1A Max (VNS2282 Option)

Programming

USB Port

Activation Codes

8

Paging Format

POCSAG 512/1200 BPS

Frequency

UHF (420 – 470 MHz)

Limited Warranty

One-Year Parts and Labor


Wireless Paging Controller
