Wireless Paging Base Station
Description

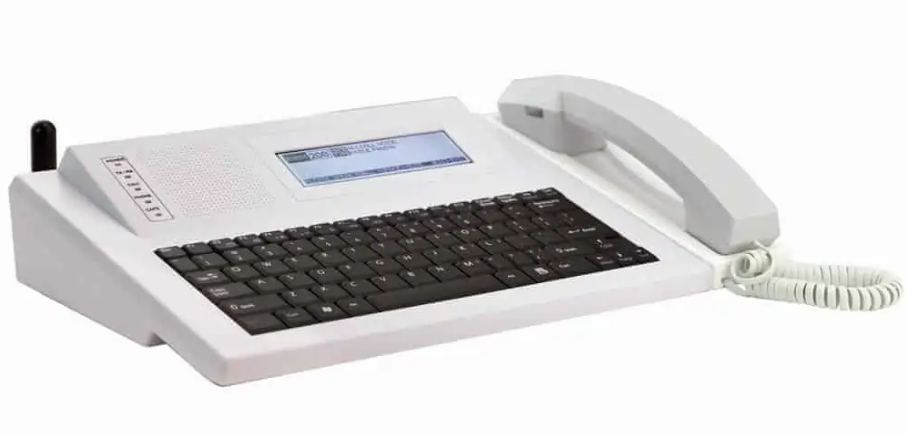

The VS4820 Wireless Paging Base Station offers a cost-effective way to implement an urgent wireless communication solution for commercial applications, such as emergency mass notification, voice & data paging, 2-way intercom communication, facility-wide audio/visual alerts, and SMS text notifications.
With its built-in database, the VS4820 offers users the ability to program up to 1,000 automatic or manually initiated events that can wirelessly activate a single or group of:
- Wireless PA speakers for playback of pre-programmed voice messages or live-voice announcements
- Send text messages to wireless LED message boards for highly visible public notifications
- Communicate with facility-wide wireless 2-way intercom stations
- Initiate on-time, schedule-based, break/shift bell alerts for improved productivity
- Activate and control wireless beacon lights for public visual alerts
- Send SMS text messages to cell phones for instant event notification
- Synchronize all on-site wireless analog/digital clocks to one accurate time
The VS4820 provides users with the capability to communicate with Visiplex wireless panic buttons. A received panic button call can instantly activate a pre-defined event, such as text messaging, voice message playback, visual alert activation, etc.
Equipped with a built-in commercial band radio transmitter, the VS4820 is ideal as an all-in-one wireless paging solution. This solution provides full RF coverage to communicate and activate devices for up to 1,000 feet. When a longer range is needed, such as multi-building applications, Visiplex offers medium or high-power radio transmitters/repeaters that can extend the radio signal range to a multi-mile radius, essentially covering any type of installation.
Weight | 5.60 lbs |
---|---|
Dimensions | 14 × 14 × 6 in |
Dimensions | 12" x 8.5" x 3" (W x H x D) |
Weight | 3.7 lbs. |
Power | 12V DC / 3A (Using 100-240V AC) |
Operating Temperature | 32° – 104°F |
Humidity | 10% – 65% |
Certifications & Approvals | FCC part 90, UL/CSA Listing (Power Supply) |
RS232 Protocols | Visiplex, TAP, Comp1 and Comp2 |
Serial Ports | Up to 4 |
Paging Format | POCSAG, 2-Tone |
Phone Line Type | Line Level (End to End Station Level), DTMF |
Phone Line Impedance | 600 Nominal (Off-Hook) |
Limited Warranty | One Year Parts and Labor |
